Oladra - Presence - Reference Music Server and reclocker

One built-in 4TB Premium solid-state music storage disk, providing capacity for most local libraries while minimising storage hardware within the Source.

Internal disks are deliberately minimised for optimum sound quality. For larger libraries, playback from a NAS is recommended. Alternatively, up to two additional internal SSDs can be factory fitted by special order.

Each Oladra Digital Audio Source provides both server and player functions. Internet streams are re-served through the server stage to the player stage, just as locally and network-stored music is served for rendering. This ensures that all music follows the same optimised server-player process.

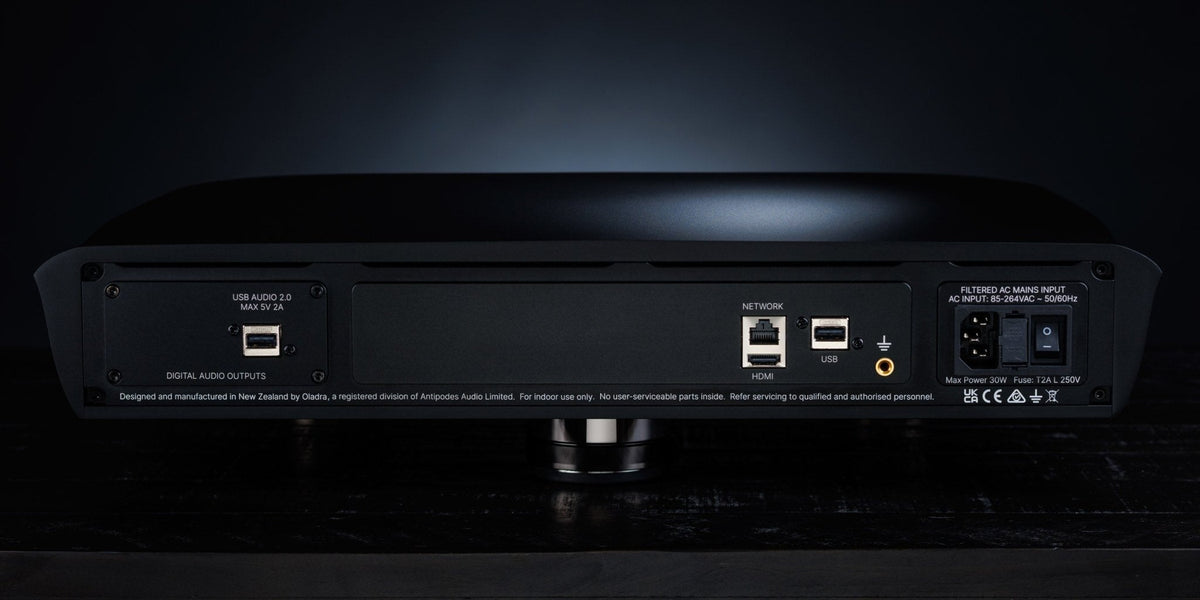

USB Audio (UAC2) on USB-A only, minimising unnecessary interface activity.

The Oladra digital audio USB output is isolated, precisely generated, and fully compliant with the USB Audio Class 2.0 (UAC2) standard. It is designed to interoperate with DAC inputs that also conform to UAC2. Some DAC implementations deviate from the standard or require manufacturer-specific firmware or configuration. Compatibility with implementations outside the UAC2 standard cannot be assured.

Physical

Oladra Reference Core

Proprietary Oladra computer design

CNC-sculpted 3-piece shell

Silver or Black Anodised Finish

491mm x 402mm x 114mm - 18.7Kg

Power

Input Voltage 80-305Vac 43-67Hz

Power Supply Safety: IEC/EN/BS EN/UL 62368-1; IEC/EN/BS EN 60335-1; EAC TR CU 004/2011. TÜV and DEKRA certified.

Fits Standard IEC C13 Power Cord

Optimised for fast transient power delivery

Soft-start and comprehensive protection

Playback

Lyrion

Roon

DLNA

Users acquire app licenses as necessary.

Best-of-breed apps are selected for stability, sound quality and popularity, and may change over time.
